| ELECTRICAL TROUBLESHOOTING MANUAL | |
| Applies to: Hyundai Coupe/Tiburon 1998-2001 | |
| GROUP | |
| Body Electrical System | Wiring |
| ELECTRICAL TROUBLESHOOTING MANUAL | |
| Applies to: Hyundai Coupe/Tiburon 1998-2001 | |
| GROUP | |
| Body Electrical System | Wiring |
|

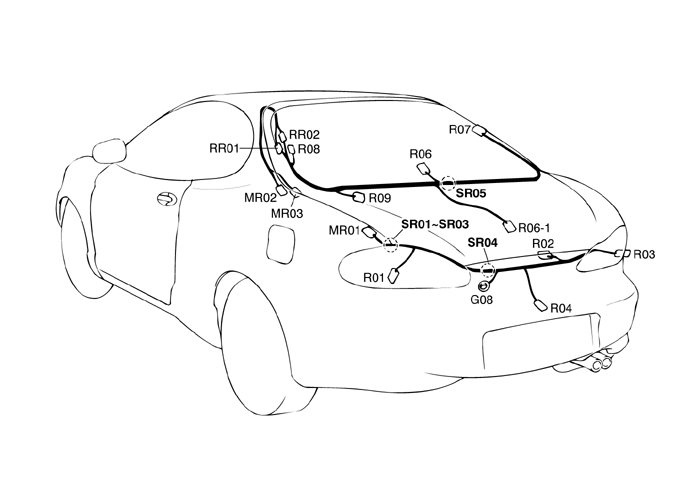

R01
|
Left rear combination lamp |
R09 |
Rear wiper motor |
|
R02 |
Tail gate switch |
MR01 |
Connection with MAIN harness |
|
R03 |
Right rear combination lamp |
MR02 |
Connection with MAIN harness |
|
R04 |
License lamp |
MR03 |
Connection with MAIN harness |
|
R06 |
High mounted stop lamp (Glass) |
RR01 |
Connection with TAIL GATE EXT. harness |
|
R06-1 |
High mounted stop lamp (Spoiler) |
RR02 |
Connection with TAIL GATE EXT. harness |
|
R07 |
Rear window defogger (-) |
G08 |
Ground |
|
R08 |
Rear window defogger (+)
|
|
|
