SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Suspension System Rear Suspension System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REAR SUSPENSION ARM BUSH REPLACEMENT
  1. Install special tools (09221-21000, 09545-28100) on the rear suspension arm.

  1. Press out the bushing.

  1. Apply soap solution to the new bushing and rear suspension arm bushing mount.

  1. Install special tools and new bushing onto the rear suspension arm.

  1. Press until the inner pipe projection is at the standard value.

    MEASUREMENT SPECIFICATION
    A 5.3 - 4.7 mm
    T 5.3 - 4.7 mm
TRAILING ARM BUSH REPLACEMENT
  1. Install the special tools (09432-22000, 09545-21100) on the trailing arm.

  1. Press out the bushing.

  1. Apply soap solution to the new bushing and trailing arm bushing mount.

  1. Install special tools (09545-21100, 09552-31000) and new bushing on to the trailing arm.

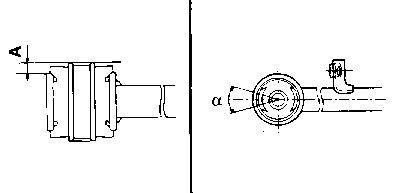

  1. Press fit the bushing into the trailing arm bushing mount as shown in the illustration.

    SPECIFICATION
    Standard Value (A) : 7.2 - 7.8 mm
    Standard Value (a) : 0°±3°
REAR AXLE CARRIER BUSH REPLACEMENT
  1. Install special tools (09432-22000, 09545-21100 on the rear axle carrier trailing arm bushing.

  1. Press out the bushing.

  1. Apply soap solution to the new bushing and trailing arm bushing mount.

  1. Install special tools (09545-21100, 09552-31000) and new bushing onto the rear axle carrier.

  1. When press fitting, press in the direction of the arrow into the position as shown in the illustration.

  1. Press fit the bushing in to the bushing mount.

    SPECIFICATION
    Standard value (A) 7.2-7.8 mm (0.28-0.30 in.)
  1. Install the special tool (09545-28100) on the rear axle carrier suspension arm bushing.

  1. Press out the bushing.

  1. Apply soap solution to the new bushing and suspension arm bushing mount.

  1. Install the special tool (09456-21100) and new bushing onto the rear axle carrier.

  1. Press fit the bushing into the suspension arm bushing mount as shown in the illustration.

    SPECIFICATION
    Standard value (A) 4.7-5.3 mm
