KICK DOWN SERVO ADJUSTMENT
Completely remove all dirt and other contaminating materials adhered around the kick down adjusting screw.
Loosen the lock nut and turn the adjusting screw the end of it.

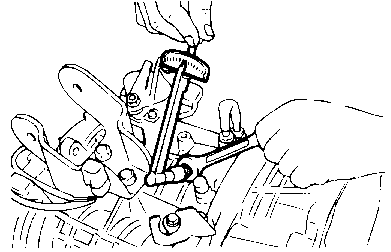

Loosen and tighten the adjusting screw two times, and then finish tighten the adjusting screw at a torque of 5 Nm (50 kg.cm, 7.2 lb.ft).
Loosen again the adjusting screw 3 to 3-1/3 turns.
White holding with 7 mm wrench socket so that the adjusting screw won't turn, tighten the lock nut to the specified torque.
TORQUE SPECIFICATION
Lock nut
15-22
Nm
(
150-220
kg·cm
,
11-16
lb·ft
)
NOTE
Before assembling, apply sealant (DC780) to center portion of the adjusting screw
