SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Body (Interior & Exterior) Grille, Molding & Bumpers
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

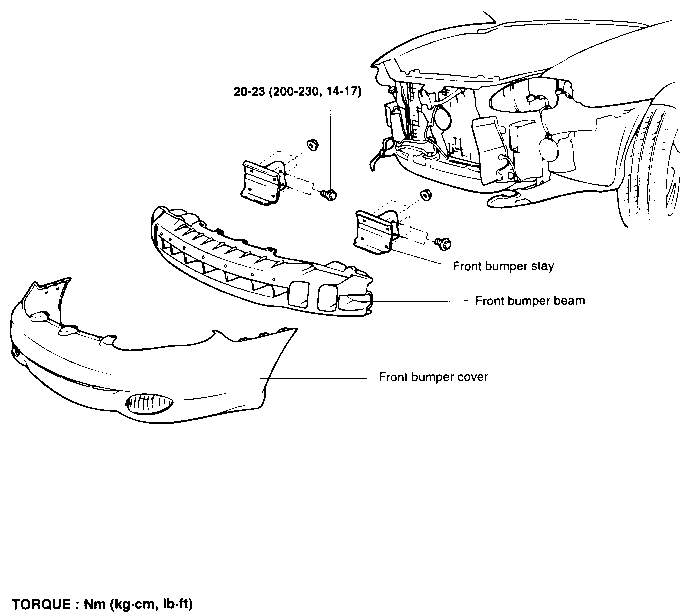

FRONT BUMPER COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL AND INSTALLATION
  1. Remove the front bumper upper guard.

  1. Remove the turn signal lamp.

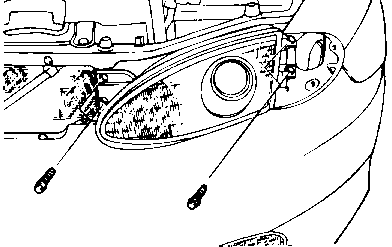

  1. Remove the head lamp.

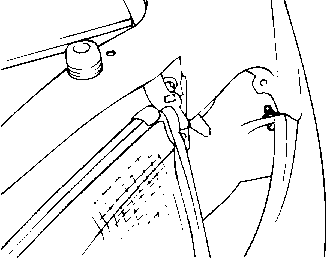

  1. Remove the front bumper upper side mounting nut.

    TORQUE SPECIFICATION
    Front bumper upper side mounting nut 4-6 Nm ( 40-60 kg·cm, 2.88-4.32 lb·ft )

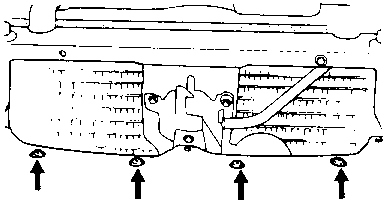

  1. Remove the front bumper lower side mounting retainer from the front bumper.

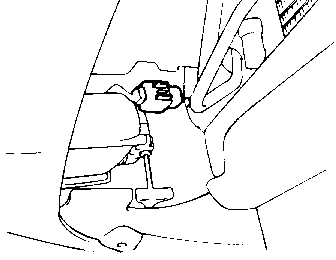

  1. Disconnect the front bumper fog lamp connector.

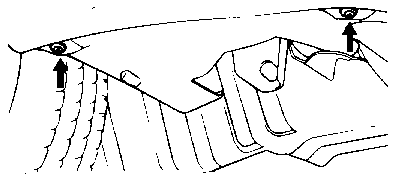

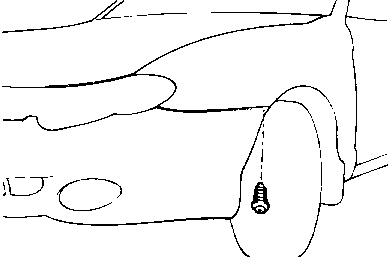

  1. Remove the mounting bolt in the corner of front bumper.

    TORQUE SPECIFICATION
    Mounting bolt 4-6 Nm ( 40-60 kg·cm, 2.88-4.32 lb·ft )

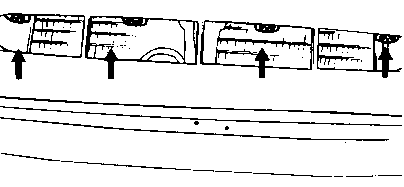

  1. Remove the front bumper upper side mounting retainer from the front bumper.

  1. Take out the front bumper cover assembly.

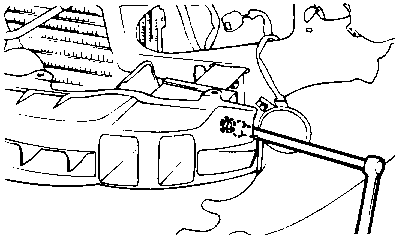

  1. Remove the front bumper beam.

    TORQUE SPECIFICATION
    Front bumper beam 20-23 Nm ( 200-230 kg·cm, 14-17 lb·ft )
  1. Installation is the reverse of the removal procedure
