SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Body (Interior & Exterior) Grille, Molding & Bumpers
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REAR BUMPER COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL AND INSTALLATION
  1. Remove the rear combination lamp.

    Disconnect the combination lamp connector.

  1. Loosen the tailgate weatherstrip.

  1. Remove the luggage mat and cover.

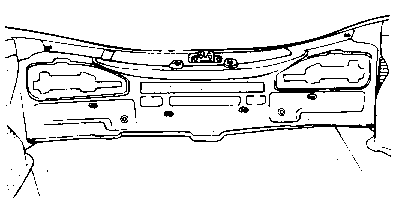

  1. Remove the rear transverse trim.

  1. Remove the warning device and luggage rear trim.

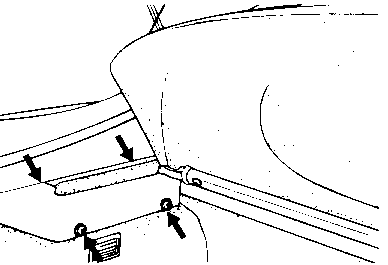

  1. Remove the covering shelf center trim and side trim.

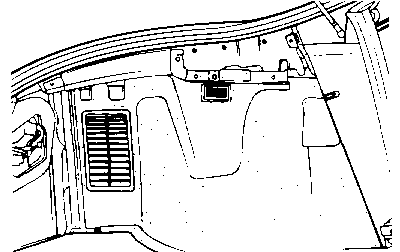

  1. Remove the luggage side trim.

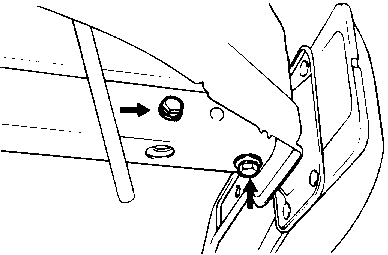

  1. Remove the rear bumper quarter bracket side mounting nuts and bolt.

    TORQUE SPECIFICATION
    Rear bumper quarter bracket side mounting nuts and bolt 4-6 Nm ( 40-60 kg·cm, 2.88-4.32 lb·ft )

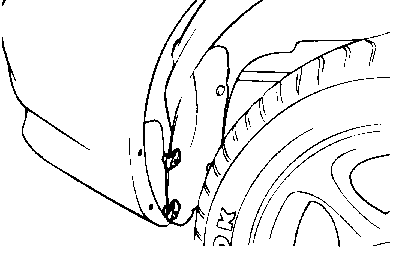

  1. Remove the rear mud guard.

  1. Remove the bolt in the end of rear bumper side.

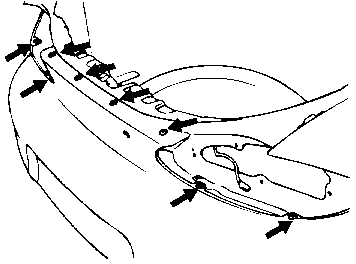

  1. Remove the rear bumper upper mounting retainer from the rear bumper.

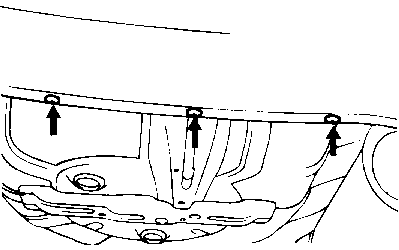

  1. Remove the lower mounting retainer.

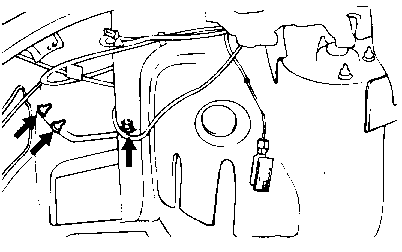

  1. Disconnect the license lamp connector from the rear bumper cover.

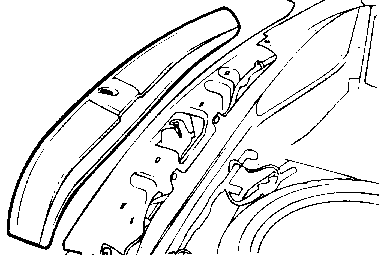

  1. Remove the rear bumper beam assembly.

    TORQUE SPECIFICATION
    Bumper beam assembly 250-300 Nm ( 25-30 kg·cm, 18.0-21.6 lb·ft )
  1. Installation is the reverse of the removal procedure.
