SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Body Electrical System Gauges
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

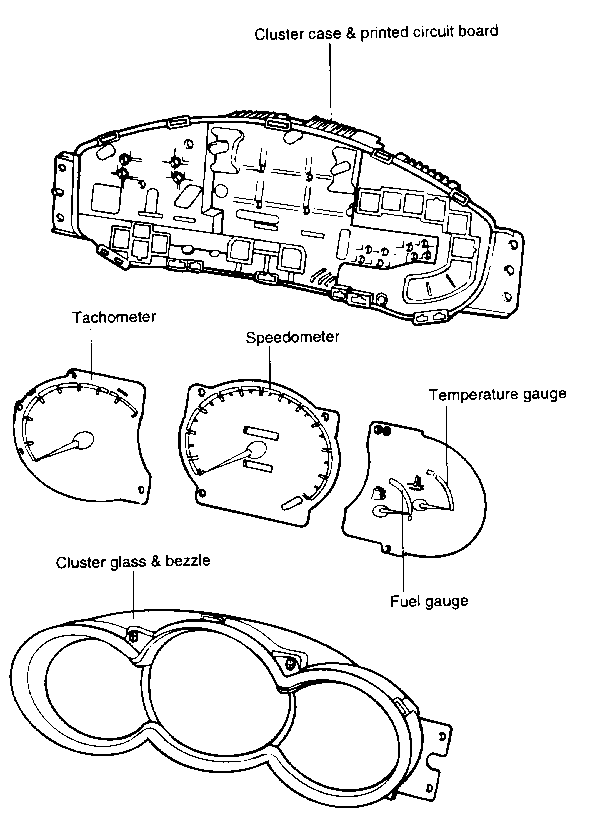

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL AND INSTALLATION
  1. Disconnect the battery negative terminal.

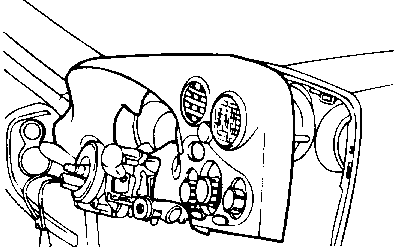

  1. Remove the mounting screws (5EA) and cluster facia panel. (Refer to BD section).

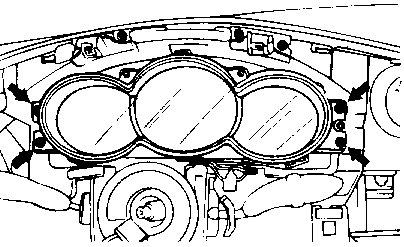

  1. Remove the cluster mounting screws (4EA) and the instrument cluster.

  1. Installation is the reverse order of removal procedure.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION

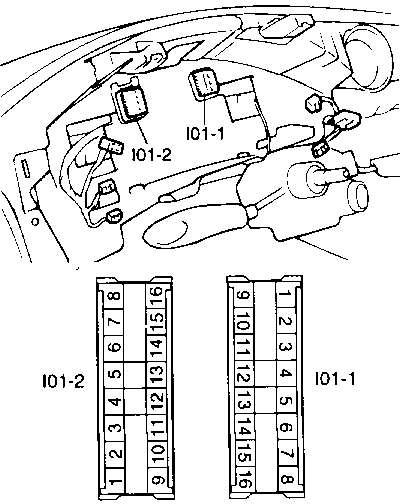

Remove the instrument cluster, check for the indication between each of the terminals (harness side) and ground.

Connector
 Terminal
 Condition
 Indication
I01-1
 4
 Constant
 Battery voltage
I01-2
 11
6
 Constant
 Continuity
I01-2
 2
15
 Ignition switch is "ON"
 Battery voltage
I01-1
 1
 Tail switch is "ON"
 Battery voltage
