SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Body Electrical System Gauges
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

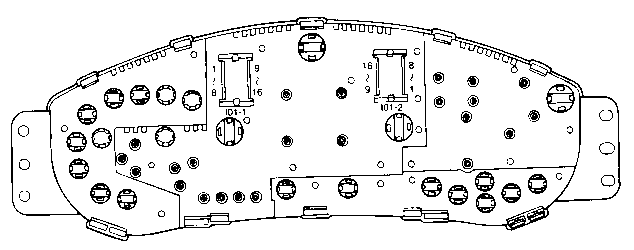

PRINTED CIRCUIT BOARD
CONNECTOR INFORMATION
Connector
 No.1
 No.2
Connector No.
 I01-1
 I01-2
The number of pins
 16 PIN
 16 PIN

The most left terminal of each terminals in the illustration above is the first terminal.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

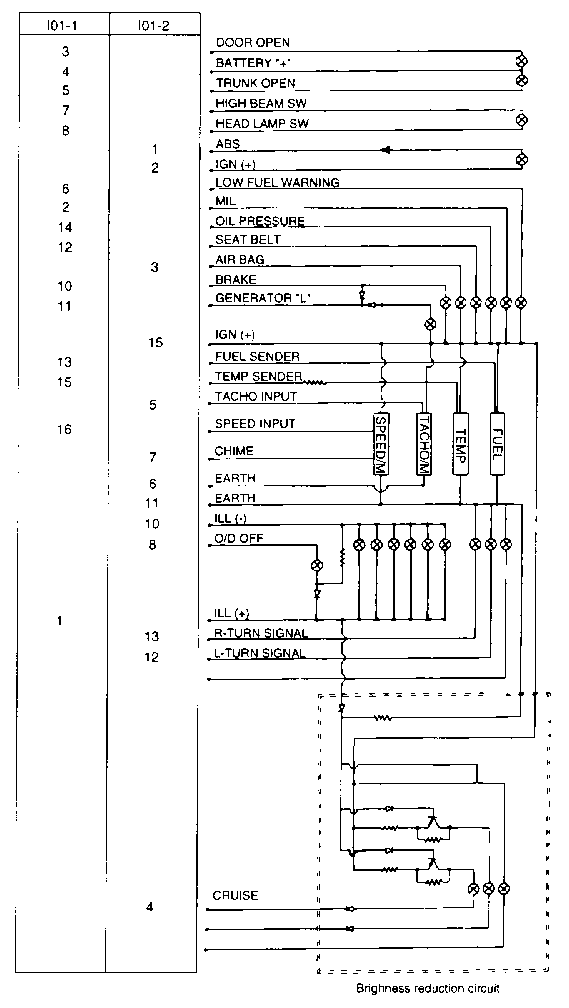

CIRCUIT DIAGRAM
