SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Body Electrical System Exterior Lamps
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REPLACEMENT OF LAMPS
HEAD LAMP/TURN SIGNAL LAMP
  1. Disconnect the battery negative terminal.

  1. Remove the screw and the turn signal lamp.

  1. Remove the head lamp mounting bolts (4EA) and remove the head lamp assembly.

  1. Installation is the reverse order of removal procedure.

REAR COMBINATION LAMP
  1. Disconnect the negative terminal from the battery.

  1. Open the trunk lid.

  1. With rear luggage cover opened, remove the mounting nuts. (5EA)

  1. Disconnect the connector, remove the lamp assembly.

  1. Installation is the reverse order of removal procedure.

HIGH MOUNTED STOP LAMP
  1. Disconnect the battery negative terminal.

  1. Using a (-) driver, detach 2 blanking covers on both sides of the lamp.

  1. Remove the mounting screws (2EA).

  1. Disconnect the connector and remove the lamp assembly.

  1. Installation is the reverse order of removal procedure.

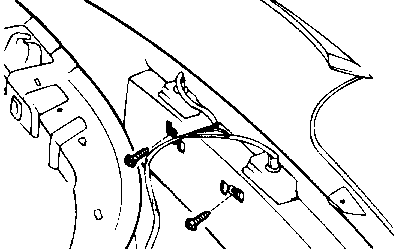

LICENSE PLATE LAMPS
  1. Disconnect the battery negative terminal.

  1. Remove the rear bumper. (Refer to BD section).

  1. Remove the license plate lamp mounting screw and bulb from the lamp assembly.

  1. Installation is the reverse order of removal procedure.

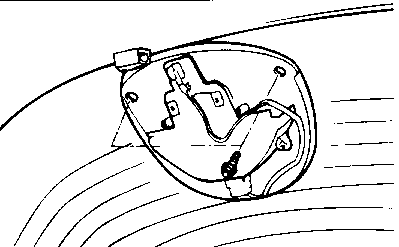

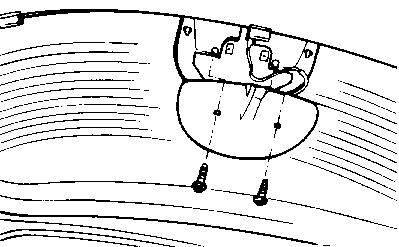

OVERHEAD CONSOLE LAMP
  1. Disconnect the battery negative terminal.

  1. Using a (-) driver, detach the map lamp lens.

  1. Detach the lamp assembly from the head lining after removal of the screws (2EA).

  1. Disconnect the connector from the roof harness

  1. Installation is the reverse order of removal procedure.

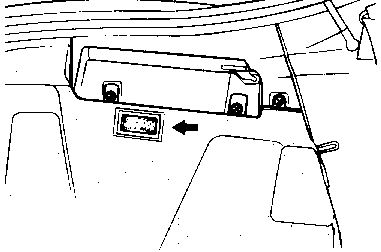

LUGGAGE LAMP
  1. Using a (-) driver, detach the luggage lamp.

  1. Disconnect the connector from the harness.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION OF COMPONENTS
RELAY (HEADLAMP & TAILLAMP)
  1. Pull out the headlamp relay from the relay box in engine compartment.

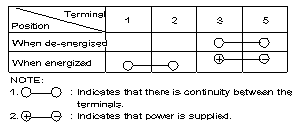

  1. Check for continuity between terminals.

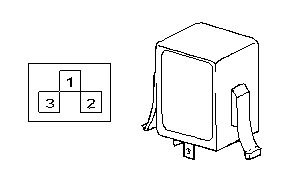

FLASHER UNIT
  1. Remove the flasher unit from the relay box in passenger compartment.

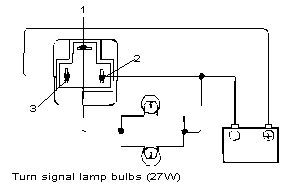

  1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 2.

  1. Connect the two turn signal lamps parallel to each other to terminal 1 and 2, check that the bulbs turn on and off.

    NOTE
    The turn signal lamps should flash 60 to 120 times per minute. If one of the front or rear turn signal lamps has an open circuit, the number of flashes will be more than 120 per minute. If operation is not as specified, replace the flasher unit.
HAZARD SWITCH
  1. Disconnect the battery negative terminal.

  1. Remove the cluster facia panel and the switch mounting screw. (2EA)

  1. Remove the hazard switch from the facia panel.

  1. Disconnect the connector from crash pad harness.

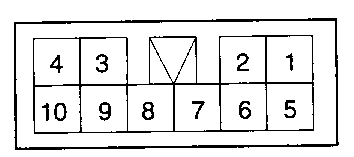

  1. Operate the switch and check for continuity between terminals by using an ohmmeter.

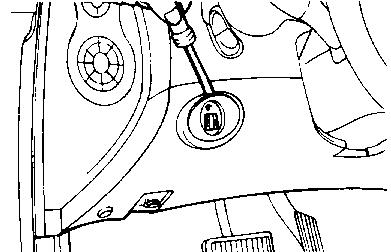

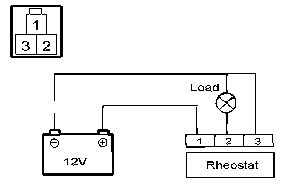

RHEOSTAT
  1. Disconnect the battery negative terminal.

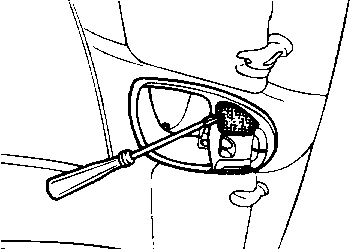

  1. Pull out the rheostat assembly using a (-) driver.

  1. Disconnect the connector from the harness.

  1. Remove the rheostat assembly.

  1. Check for intensity of lamp load. If the light intensity of the lamps changes smoothly without any flickering when the rheostat is turned, the rheostat is normal.

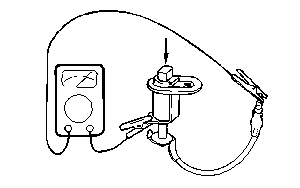

LUGGAGE COMPARTMENT LAMP SWITCH
  1. Disconnect the battery negative terminal.

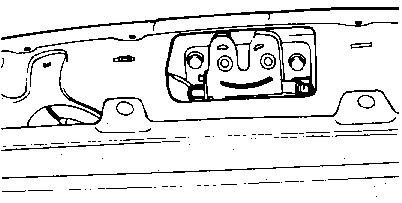

  1. After opening the trunk, disconnect the connector from rear harness.

  1. Check for continuity between terminal and body while pushing the rod.

    Switch rod condition
    		 Continuity
    Pushed (OFF)
    		 Non-conductive (INFINITE OHM)
    Released (ON)
    		 Conductive (0OHM)
