SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Brake Systems Anti-lock Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

CIRCUIT INPECTION (SPEED SENSOR CIRCUIT - SHORT TO B+)

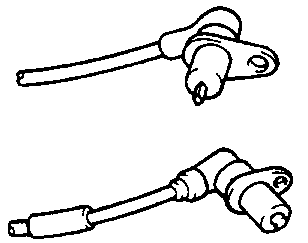

At each wheel hub there is a tone wheel and an inductive sensor, which supplies wheel speed information to the ABSCM. The sensor is comprised of a magnet and a pole piece surrounded by a coil. When the tone wheel rotates adjacent to the sensor pole piece, an alternating current signal is generated in the coil with a frequency proportional to wheel speed.

A special integrated circuit in the ABSCM translates the generated AC signal to a square wave.

This square wave is used by the microprocessor to operate the ABS.

DTC
Code
DISPLAY ON
SCAN TOOL
Symptom
Possible cause
62
LF WHEEL SENSOR - CIRCUIT OPEN
Sensor LF circuit open or short to 12V
  • Wheel speed sensor
  • Harness or connector between the wheel speed sensor and ABSCM
  • ABSCM
63
RF WHEEL SENSOR - CIRCUIT OPEN
Sensor RF circuit open or short to 12V

64
LR WHEEL SENSOR - CIRCUIT OPEN
Sensor LR circuit open or short to 12V

65
RR WHEEL SENSOR - CIRCUIT OPEN
Sensor RR circuit open or short to 12V

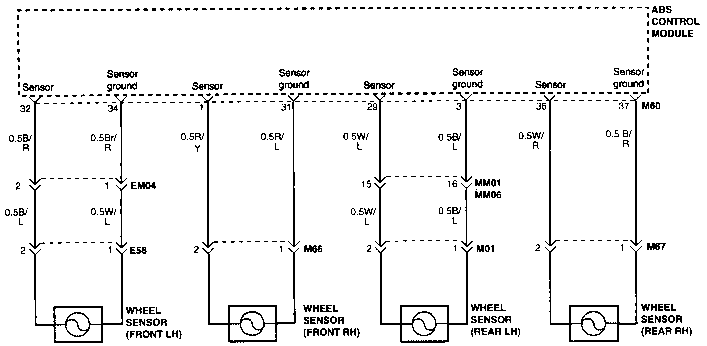

WIRING DIAGRAM
INSPECTION PROCEDURE

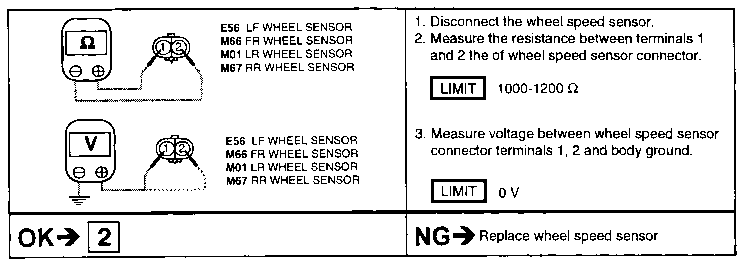

  1. Check Wheel Speed Sensor.

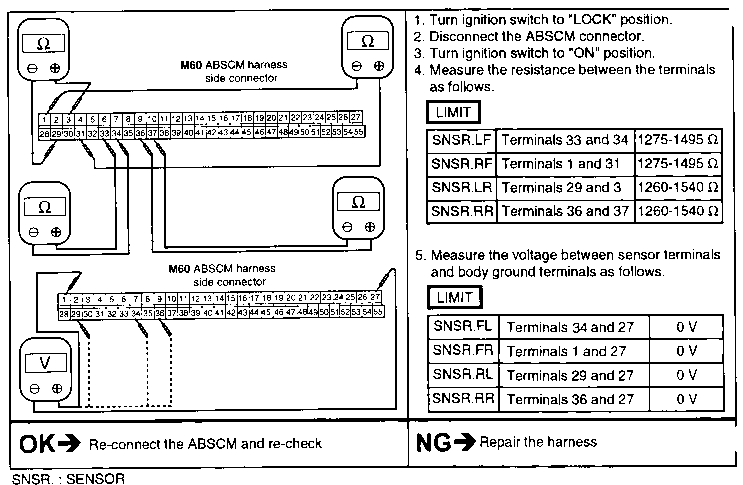

  1. Check the harness and connector between the ABSCM and each wheel speed sensor
