SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Brake Systems Anti-lock Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

STOP LAMP SWITCH CIRCUIT

The stop lamp switch senses whether the brake pedal is depressed or released, and sends the signal to the ABSCM

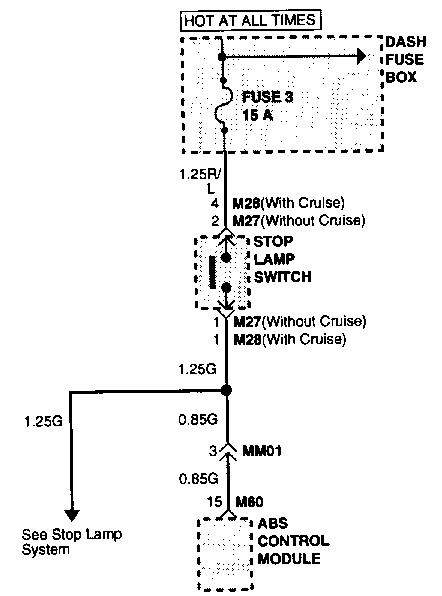

WIRING DIAGRAM
INSPECTION PROCEDURE

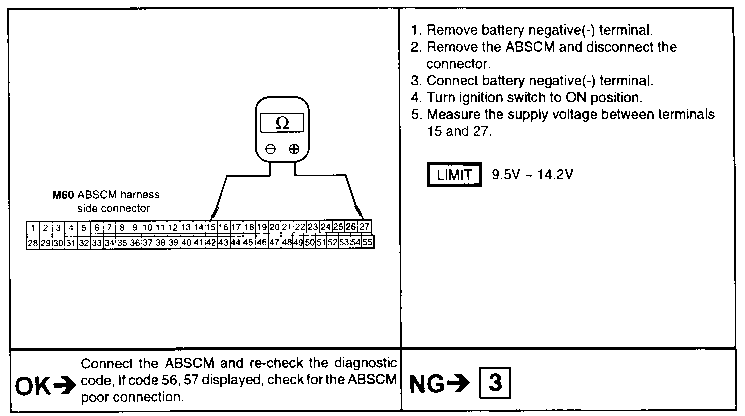

  1. Check the stop lamp switch circuit
