SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Drive Shaft & Axle Front Axle
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL
NOTE
Before removing the front axle assembly, disconnect the ABS wheel sensor from the assembly and move it away from the front axle assembly area. Failure to do so may result in the sensor wires being damaged and the sensor becoming inoperative.

Remove the drive shaft nut. Jack up the vehicle and support it with jack stands. Remove the wheel and tire.

Remove the front brake assembly from the knuckle and suspend with a wire.

NOTE
Brake hose does not need to be disconnected from brake caliper. Be careful not to depress brake pedal, or piston will pop out.

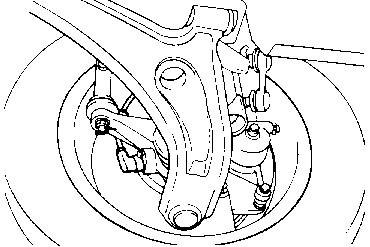

Disconnect the lower arm ball joint from the knuckle using the special tool.

  1. Using the special tool, remove the drive shaft nut.

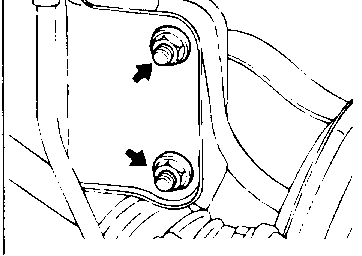

  1. Disconnect the tie rod and ball joint from the knuckle using the special tool.

    NOTE
    1. Be sure to tie a cord to the special tool and to a nearby part.
    2. Loosen the nut but do not remove it.

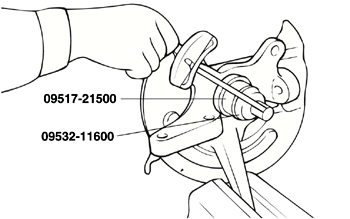

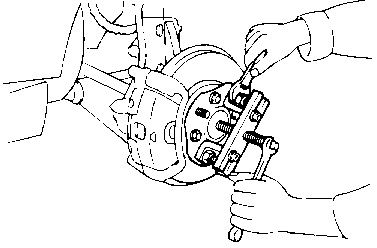

  1. Disconnect the drive shaft from the hub using the special tool.

  1. Remove the hub and knuckle as an assembly from the strut.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY
  1. Fill the wheel bearing with multipurpose grease.

  1. Apply a thin coating of multipurpose grease to the knuckle and bearing contact surfaces.

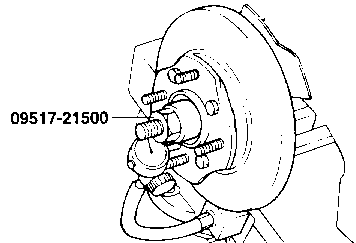

  1. Press-in the bearing by using the special tool.

    NOTE
    Do not press inner race of wheel bearing assembly.
  1. Install snap ring into groove of knuckle.

  1. Measure the hub bearing starting torque.

    TORQUE SPECIFICATION
    Hub bearing starting torque [Limit] 1.3 Nm ( 13 kg·cm, 12 lb·ft )
  1. If the starting torque is 0 Nm (0 lb.in), measure the hub bearing axial play.

  1. If the hub axial play exceeds the limit while the nut is tightened to 200-260 Nm (2,000-2,600 kg.cm, 148-192 lb.ft), the bearing, hub and knuckle have not been installed correctly. Repeat the disassembly and assembly procedure.

    MEASUREMENT SPECIFICATION
    Hub bearing axial play [Limit] 0.008 mm ( 0.0003 in )
  1. Remove the special tool

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSTALLATION
  1. Install parts to the torque specifications.

  1. Be sure to install the washer and wheel bearing nut in the specified direction.

  1. After installing the wheel, lower the vehicle to the ground and tighten the wheel bearing nut.

  1. If the position of the split pin holes do not match, tighten the nut up to 260 Nm (2600 kg.cm, 188 lb.ft) maximum.

  1. Install the split pin in the first matching holes and bend it over.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION
  1. Check the hub for cracks and the splines for wear.

  1. Check the snap ring for cracking or damage.

  1. Check the steering knuckle for cracks

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION
  1. Check the hub and brake disc mounting surfaces for scoring and contamination.

  1. Check the knuckle inner surface for scoring and cracks.

  1. check for a defective bearing (Refer to "wheel bearing trouble shooting".)

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

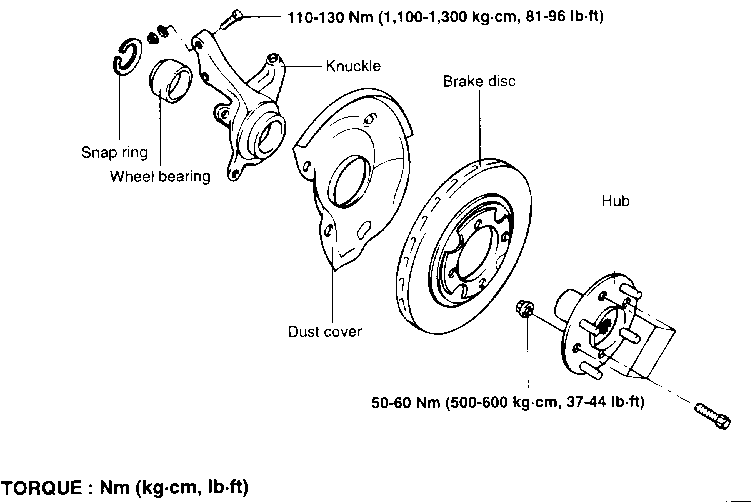

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DISASSEMBLY

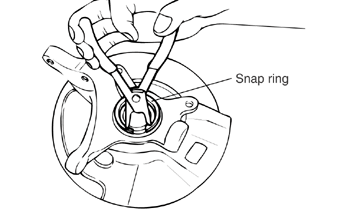

  1. Remove the snap ring.

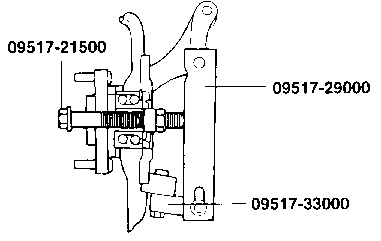

  1. Attach the special tools to the knuckle and hub.

  1. Secure the knuckle in a vise.

  1. Tighten the nut of the special tool and remove the hub from the knuckle.

    NOTE
    When removing wheel hub or wheel bearing from knuckle, replace wheel bearing assembly (outer race, inner races and grease seals) with a new one.

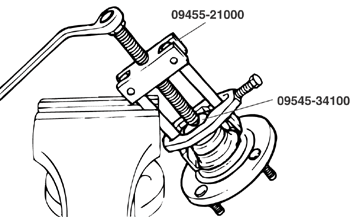

  1. Using the special tool, remove the wheel bearing inner race (outside) from the front hub.

  1. Install the inner race (outside) that was removed from the hub to the wheel bearing, and then use the special tool to remove the wheel bearing.
