SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Heating, Ventilation & Air Conditioning Air Conditioning System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

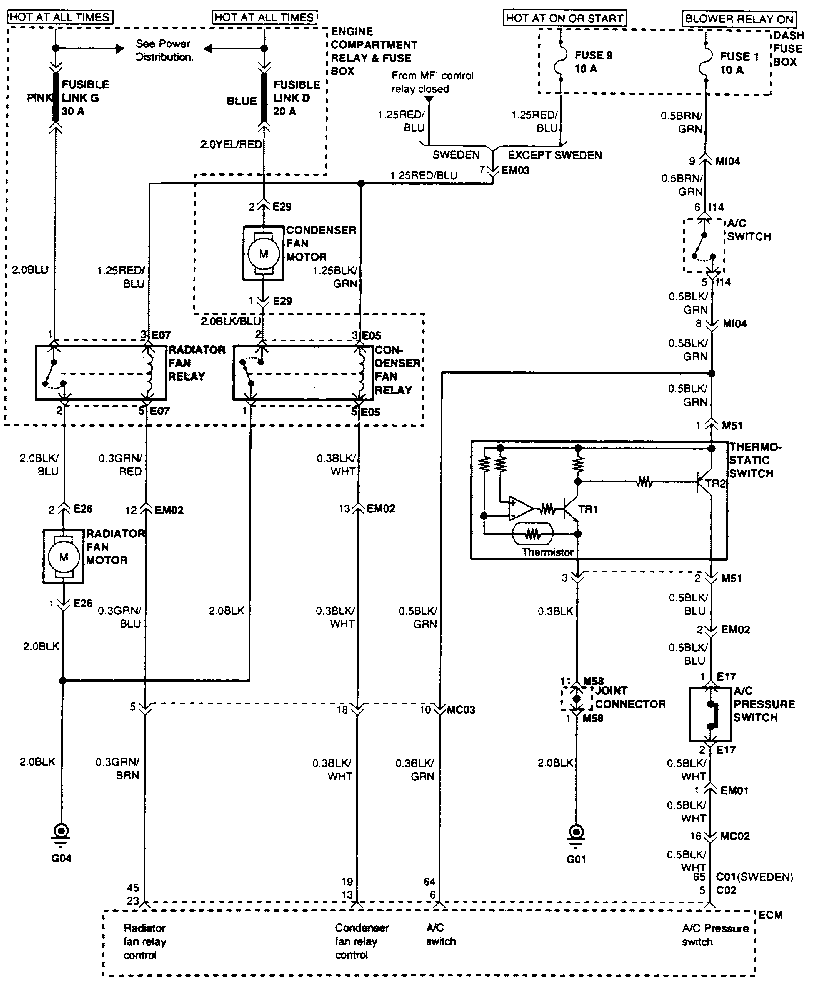

COOLING CONTROLS (FOR DETAILS, REFER TO E.T.M SCHEMATIC DIAGRAMS)
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

COMPONENT LOCATION

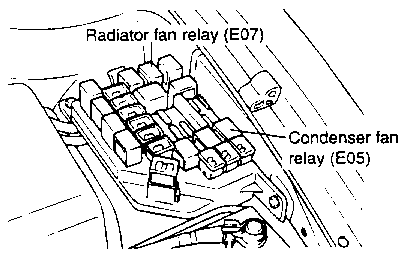

Engine compartment fuse & relay box
Dash fuse box

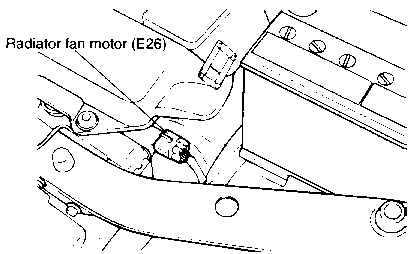

Radiator fan motor (E26)

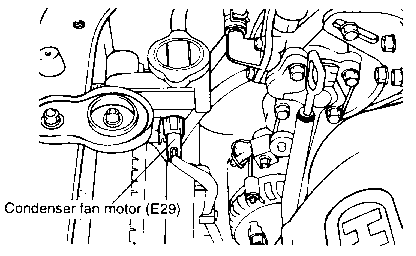

Condenser fan motor (E29)

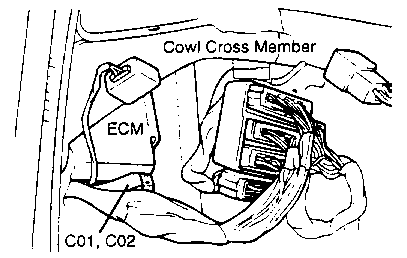

ECM (Engine control module) (C02)
