SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Restraints SRS Air Bag System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

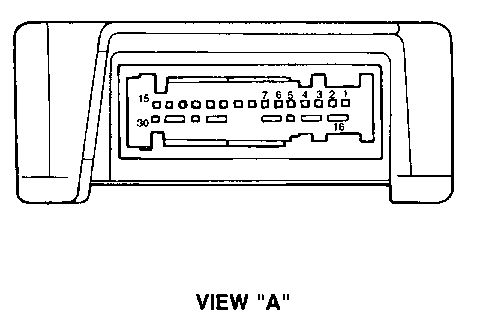

SRSCM CONNECTOR
VIEW "A"
CAUTION

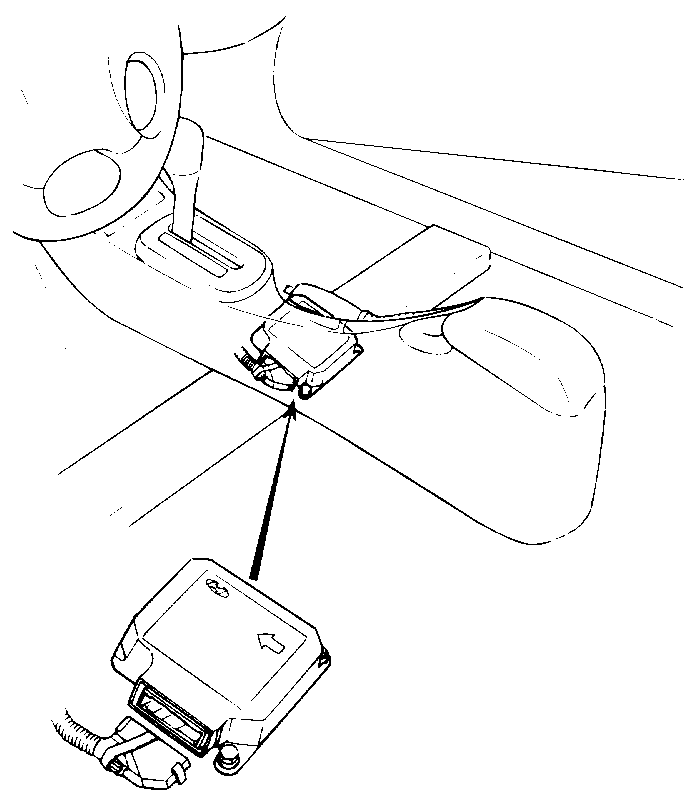

Install the SRSCM with the arrow mark on the SRSCM facing toward the front of the vehicle.
PIN DESCRIPTION (Connector pin layout)
Pin 1
 Not used
Pin 2
 Not used
Pin 3
 Not used
Pin 4
 Not used
Pin 5
 Ignition voltage
Pin 6
 Ground
Pin 7
 SRS warning lamp
Pin 8
 Not used
Pin 9
 Serial data input/output
Pin 10
 Driver inflator, high side
Pin 11
 Driver inflator, low side
Pin 12
 Not used
Pin 13
 Passenger inflator, high side
Pin 14
 Passenger inflator, low side
Pin 15
 Not used
VIEW "A"
PIN DESCRIPTION (Shorting bar removal tab)
Pin 16, 17
 Not used
Pin 18, 19
 Not used
Pin 21, 22
 SRS SRI
Pin 25, 26
 Driver inflator
Pin 28, 29
 Passenger inflator
