SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Restraints SRS Air Bag System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DTC - B1352, B1353
DTC CODE
 DISPLAY ON SCAN TOOL
 CONDITION
B1352
 PAB resistance - High
  • Ignition switch "ON" or start release
  • kPAB module circuit resistance > 2.8 - 5.4OHM
B1353
 PAB resistance - Low
  • Ignition switch "ON" or start release
  • kPAB module circuit resistance > 0.4 - 1.6OHM
CHECK ITEMS
  • Open circuit in passenger airbag harness
  • PAB module malfunction
  • SRS control module malfunction
CHECK PROCEDURES

The SRSCM shall measure the resistance of the PAB to detect a resistance which lies outside the allowed range. Never attempt to measure the resistance of PAB.

Before inspection,

  1. Disconnect the battery negative (-) terminal cable and wait at least 30 second to prevent unexpected deployment of airbag.

  1. Remove the DAB and PAB connectors.

    CAUTION
    Keep the surface of airbag module facing upward.

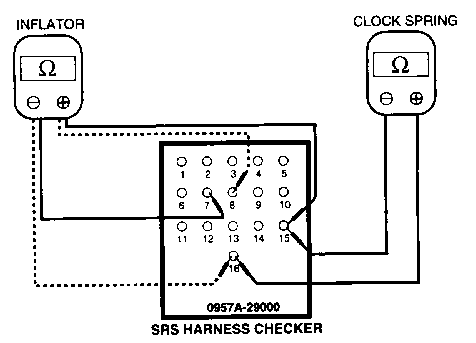

INFLATOR CIRCUIT (PAB)
  1. Disconnect SRSCM connector, DAB and PAB.

  1. Connect the SRS harness checker to the inflator connector and SRSCM harness side connector.

  1. Check the continuity between the terminals of checker, and the LIMIT is as following.

    Terminals
    		 B1352
    		 B1353
    7 to 15
    		 Continuity
    		 -
    8 to 16
    		 Continuity
    		 -
    15 to 16
    		 -
    		 Non-continuity
