SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Body (Interior & Exterior) Hood, Doors & Trunk Lid
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

GLASS ADJUSTMENT
SERVICE PROCEDURE

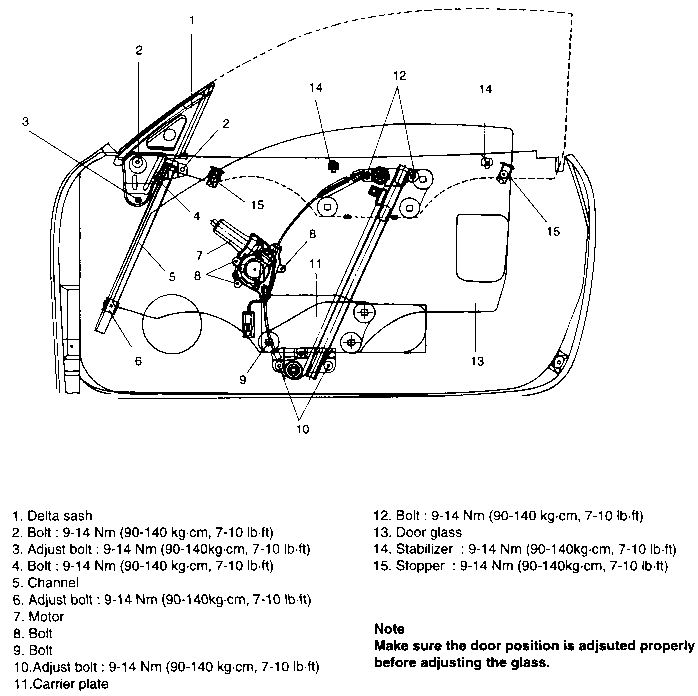

  1. Remove the door trim panel and door trim seal.

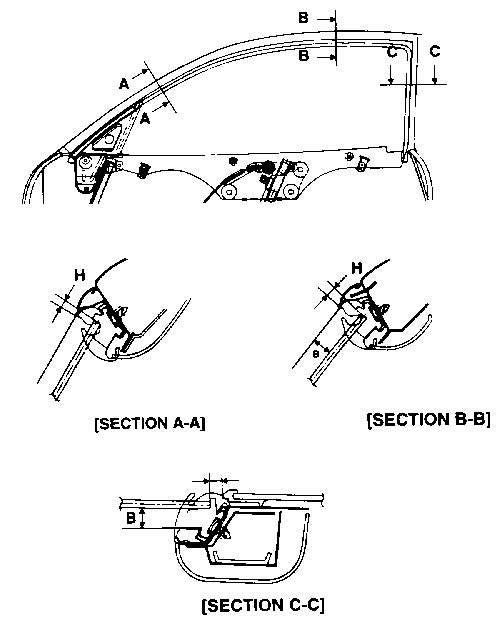

  1. Adjust the clearance as described in the adjustment procedure.

Unit: in (mm)

Measuring point
A-A
 B-B
 C-C
Clearance
 H
 0.1889 (4.8)
 0.2598 (6.6)
 0.315 (8.0)
Clearance
 B
 0.472 (12)
 0.61 (15.5)
 0.488 (12.4)
Adjustment procedure

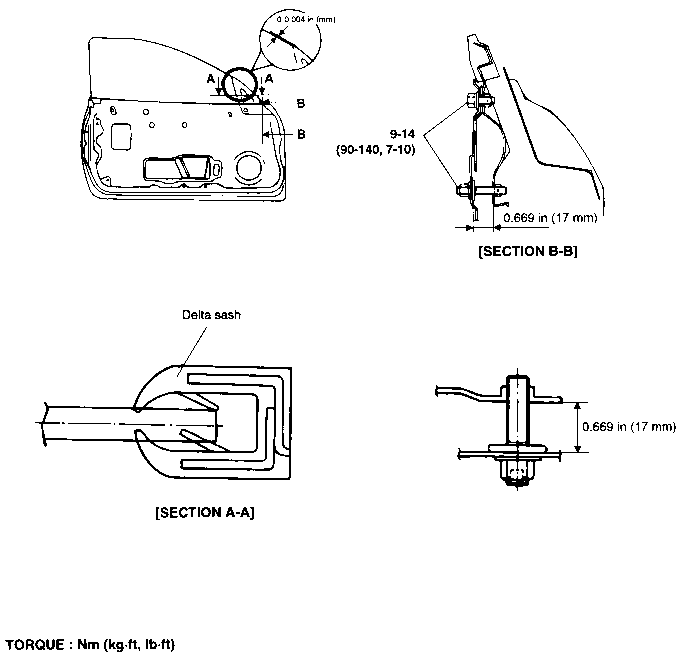

  1. Adjust the delta sash by using the delta sash adjust bolt at the bottom of the sash (Distance between the delta sash and the door inner panel: 0.669 in (17 mm).

    • Delta sash bolt tightening torque: 9-14 Nm (90-140 kg·cm, 7-10 lb·ft)
    • Delta sash adjust bolt tightening torque: 9-14 Nm (90-140 kg·cm, 7-10 lb·ft)

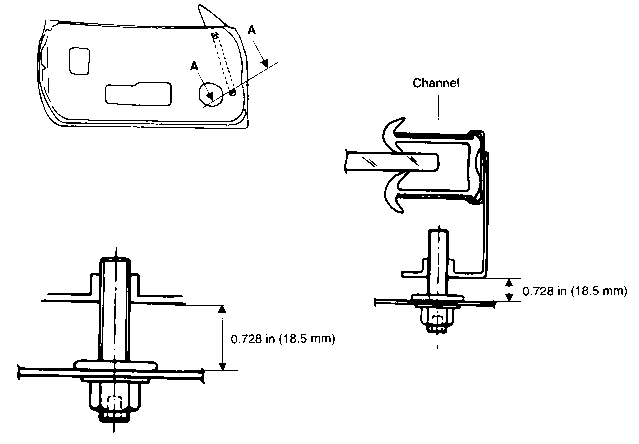

  1. Adjust the channel by using the channel adjust bolt at the bottom of the channel (Distance between the channel and the door inner panel: 0.728 in (18.5 mm).

    • Channel mounting bolt tightening torque: 9-14 Nm (90-140 kg·cm, 7-10 lb·ft)
    • Channel adjust bolt tightening torque: 9-14 Nm (90-140 kg·cm, 7-10 lb·ft)

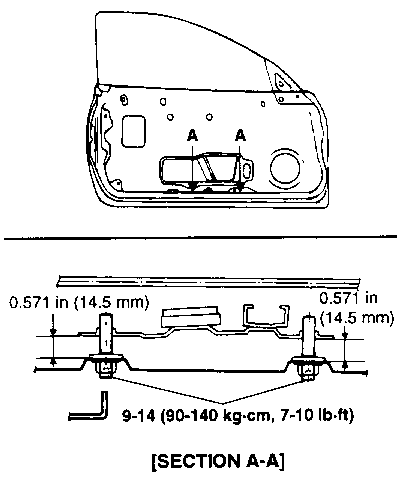

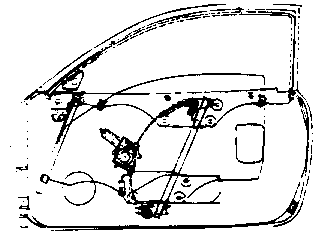

  1. Adjust the regulator by using the regulator adjust bolt at the bottom of the regulator (Distance between the channel and the door inner panel: 0.571 in (14.5 mm).

    • Regulator upper mounting bolt tightening torque: 9-14 Nm (90-140 kg·cm, 7-10 lb·ft)
    • Regulator adjust bolt tightening torque: 9-14 Nm (90-140 kg·cm, 7-10 lb·ft)

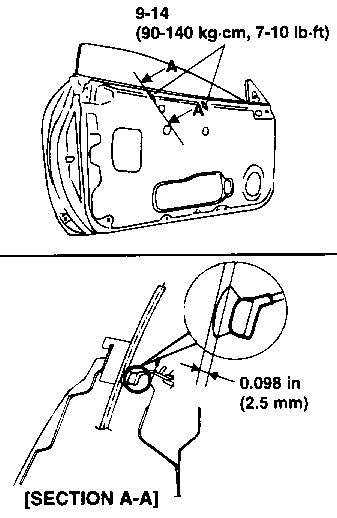

  1. Adjust and set the front and rear stabilizers in the positions which will ensure correct clearance, then retighten the stabilizer nuts securely.

    • Stabilizer tightening torque: 9-14 Nm (90-140 kg·cm, 7-10 lb·ft)

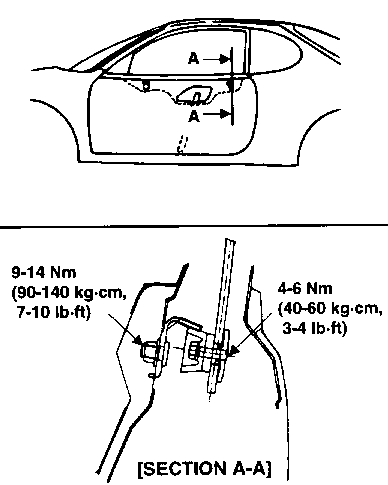

  1. Adjust the clearance between widthward and hightward by using stopper and glass mounting bolts.

NOTE
When the glass is fully closed, the glass end must be parallel to the weatherstrip in the roof section and the two stopper catch must simultaneously come into contact.
  • Stopper catch tightening torque: 9-14 Nm (90-140 kg·cm, 7-10 lb·ft)
  • Glass stopper tightening torque: 0.0157-0.0236 lb·ft)
  1. With the door and glass closed fully, check for water leaks.

  1. Install the door trim seal and trim panel.
