SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Brake Systems Anti-lock Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

WHEEL SPEED SENSOR
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL
  1. Disconnect the wheel speed sensor connector and mounting bolts.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION
  1. Connect an ohmmeter between the wheel speed sensor terminals and measure the resistance.

    RESISTANCE SPECIFICATION
    Service standard (Front) 1275-1495 O
    Service standard (Rear) 1260-1540 O
  1. Connect a voltmeter between the wheel speed sensor terminals, and measure the voltage by turning the wheel.

    NOTE
    Set the voltmeter to measure AC voltage.

Service standard: AC voltage detected.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

BLEEDING OF BRAKE SYSTEM
NOTE
There is no special bleeding procedure for the ABS SYSTEM. For bleeding, please use the standard rules as described for the conventional brake system as follows.
  1. Remove the reservoir cap and fill the brake reservoir with brake fluid.

    CAUTION
    Do not allow brake fluid to remain on a painted surface. Wash it off immediately.
    NOTE
    When bleeding by pressurized fluid, do not depress the brake pedal.
  1. Connect the vinyl tube to the wheel cylinder bleeder screw, and insert the other end of tube in a half-full container of brake fluid.

  1. Slowly pump the brake pedal several times.

  1. While depressing the brake pedal fully, loosen the bleeder screw until fluid starts to run out. Then close the bleeder screw.

  1. Repeat steps 3 and 4 until there are no more bubbles in the fluid.

  1. Tighten the bleeder plug screw.

    TORQUE SPECIFICATION
    Bleed screw (front) 7-13 Nm ( 70-130 kg·cm, 5-10 lb·ft )
    Bleed screw (rear) 8-20 Nm ( 80-200 kg·cm, 6-15 lb·ft )

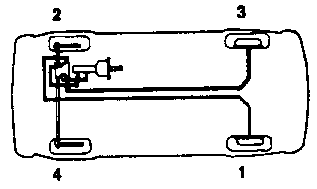

  1. Repeat the above procedure for each wheel in the sequence shown in the illustration.
