SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Engine Mechanical System Cooling System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY

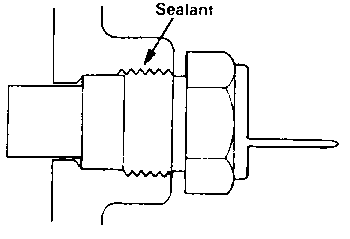

  1. Apply sealant to the threaded portion and tighten to the specified torque.

    TORQUE SPECIFICATION
    Coolant temperature sender 10-12 Nm ( 100-120 kg·cm, 7-9 lb·ft )
    Coolant temperature sensor 15-20 Nm ( 150-200 kg·cm, 11-14 lb·ft )
  1. Connect the harness connector to the Coolant temperature sender, Coolant temperature sensor.

  1. Connect the battery to ground cable.

  1. Refill the system with clean coolant.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DISASSEMBLY
  1. Drain the coolant down to sensor level or below.

  1. Disconnect the battery ground cable and disconnect the engine harness connector from the sender & sensor.

  1. Remove the sender & sensor

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION
Coolant Temperature Sender

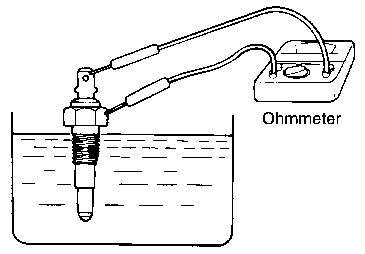

  1. Heat the Engine coolant temperature gauge by submerging it in hot engine coolant.

  1. Check that the resistance is within the specified range.

    Resistance:
    At 70°C(158°F)
    		 90.5-117.5 OHM
    At 115°C(239°F)
    		 21.3-36.3 OHM
Coolant Temperature Sensor

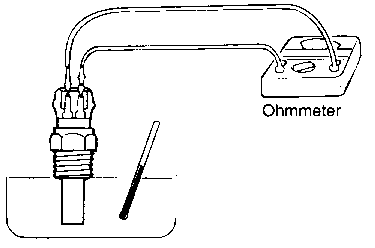

  1. Heat the sensor by submerging it in hot engine coolant.

  1. Check that the resistance is within the specified range.

    Resistance:
    At 20°C(68°F)
    		 2.21-2.69 kOHM
    At 80°C(176°F)
    		 264-328 OHM
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

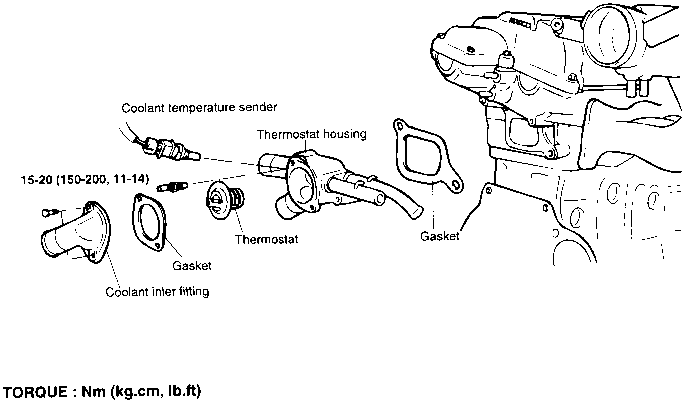

COMPONENTS
