SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Transaxle/Transmission Automatic Transaxle System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

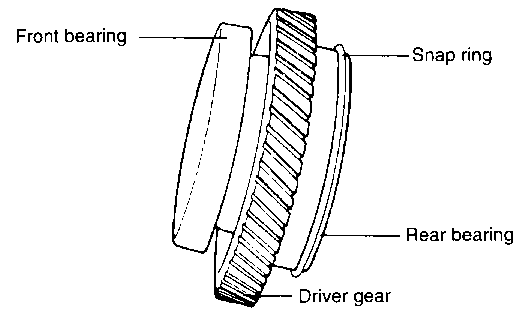

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DISASSEMBLY

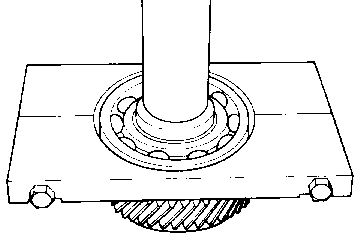

  1. Using special tool (09457-34000), pull off the front bearing from transfer drive gear.

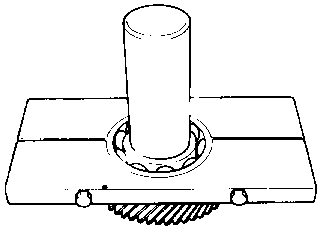

  1. Using special tool (09457-22000) , pull off the rear bearing from transfer drive gear.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY
  1. Using special tool (09452-21200), press the front bearing and the rear bearing onto the transfer drive gear.
