Applies to: Hyundai Coupe/Tiburon 1998-2000
Engine Electrical System Ignition System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

  1. Disconnect the battery negative terminal.

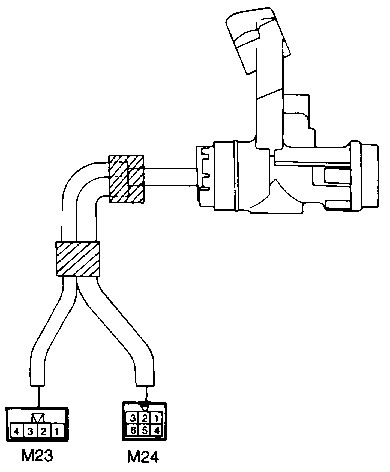

  1. Remove the connector located under the steering column.

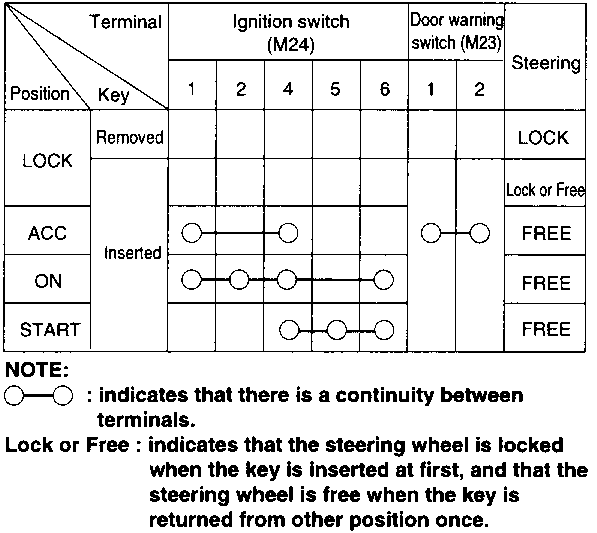

  1. Check for continuity between terminals.


If engine won't crank condition determine whether the condition exists with the transaxle range switch in the "PARK" or in the "NEUTRAL" position.

If the "NO-CRANK" condition occurs in one shift lever position but not the other, a more probable cause is the transaxle range switch.
