SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Body Electrical System Warning Indicators
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

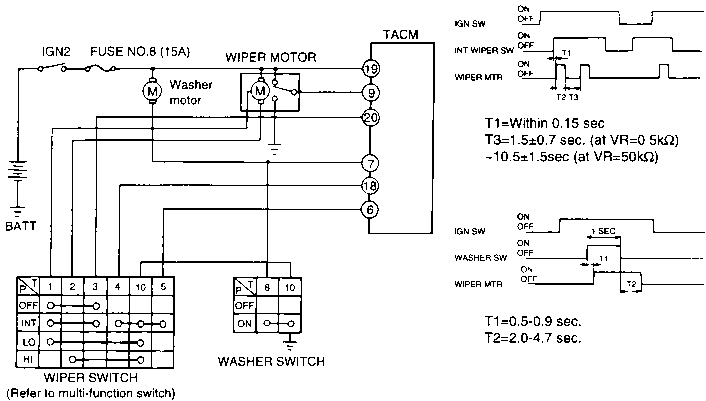

CIRCUIT DIAGRAM
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

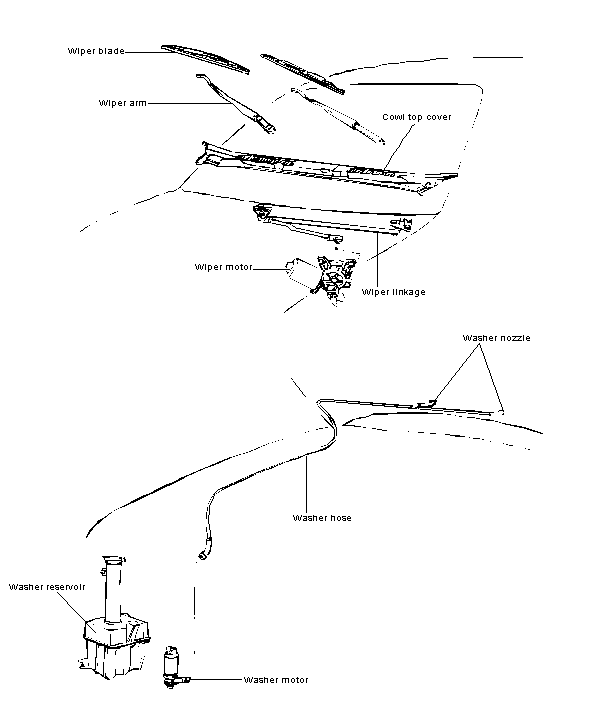

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL AND INSTALLATION
  1. Remove the wiper arm mounting nut and wiper arm and blade assembly. Be careful not to scratch the engine hood.

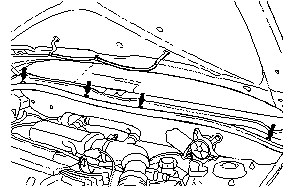

  1. Remove the cowl top mounting screws (4EA) and the cowl top cover.

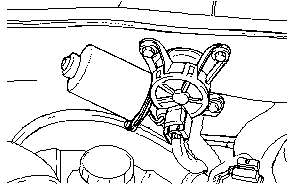

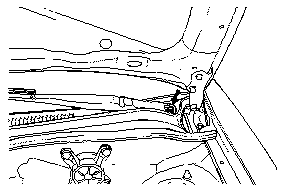

  1. Remove the wiper motor connector and mounting bolts (4EA)

  1. After disconnect the motor from the link, remove the motor assembly.

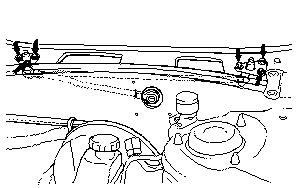

  1. Remove the wiper link mounting bolts (6EA) and take out the wiper link assembly from the cowl top panel.

  1. Installation is the reverse order of removal procedure.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

SERVICE ADJUSTMENT PROCEDURES
WIPER MOTOR
Speed operation check

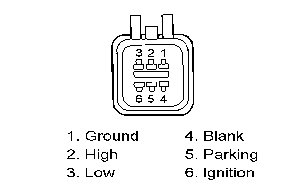

  1. Remove the connector from the wiper motor.

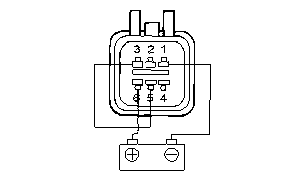

  1. Attach the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 3.

  1. Check that the motor operates at low speed.

  1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 2.

  1. Check that the motor operates at high speed.

Automatic stop operation check
  1. Operate the motor at low speed.

  1. Stop the motor operation anywhere except the off position by disconnecting terminal 3.

  1. Connect terminals 5 and 3.

  1. Connect the positive (+) lead from the battery to terminal 6 and ground terminal 1.

  1. Check that the motor stops at the off position.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION

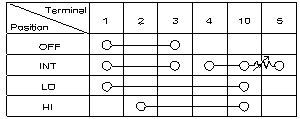

Check the switch for continuity between the terminals.

Wiper switch
Washer switch

If continuity is not as specified, replace the switch.

Washer Motor
  1. With the washer motor connected to the washer tank, fill the washer tank with water.

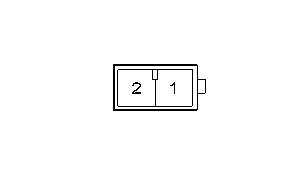

  1. Connect battery positive (+) and negative (-) cables to terminals 2 and I respectively to see that the washer motor operates and water is ejected.
