SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Body Electrical System A/T & Key Lock Control System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION
  1. Remove the solenoid connector.

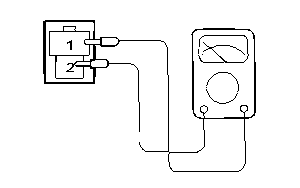

  1. Using an ohmmeter, measure the resistance between terminals.

    RESISTANCE SPECIFICATION
    Standard resistance: 12 - 16 O

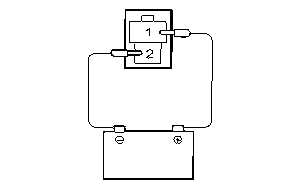

  1. Attach the positive (+) lead from the battery to terminal 1. and the negative (-) lead to terminal 2.

  1. Check that an operation noise can be heard from the solenoid.
