MEASUREMENT OF THE PRIMARY COIL RESISTANCE

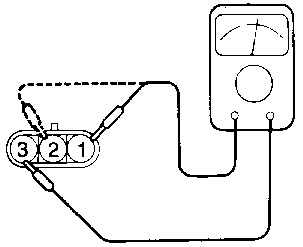

  1. Measure the resistance between connector terminals 3 and 2 (the coils at the No.1 and No.4 cylinder sides) of the ignition coil, and between terminals 3 and 1 (the coils at the No.2 and No.3 cylinder sides).

    RESISTANCE SPECIFICATION
    Standard value: 0.45 - 0.55 O
MEASUREMENT OF THE SECONDARY COIL RESISTANCE

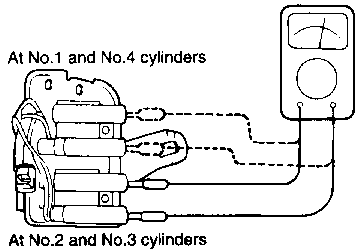

  1. Measure the resistance between the high-voltage terminal for the No.1 and No.4 cylinders, and between the high-voltage terminals for the No.2 and No.3 cylinders.

    RESISTANCE SPECIFICATION
    Standard value: 10.3 - 13.9 K O
    CAUTION
    Be sure, when measuring the resistance of the secondary coil, to disconnect the connector of the ignition coil.
