SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Engine Mechanical System Cooling System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DISASSEMBLY AND INSPECTION
  1. Drain the coolant down to thermostat level or below.

  1. Remove the coolant outlet fitting and gasket.

  1. Remove the thermostat.

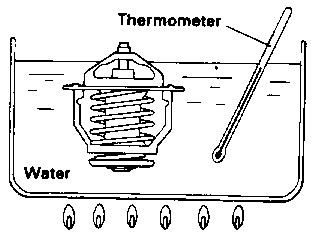

  1. Immerse thermostat in hot coolant to check proper valve opening temperature Replace if necessary.

    Valve opening temperature
    		 82°C(177°F)
    Full opening temperature
    		 95°C(205°F)
    Valve lift (at full open)
    		 8.5mm(0.33 in.) or more
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY
  1. Check that the flange of the thermostat is correctly seated in the socket of the thermostat housing.

  1. Install a new gasket and the coolant outlet fitting.

  1. Refill the system with clean coolant.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

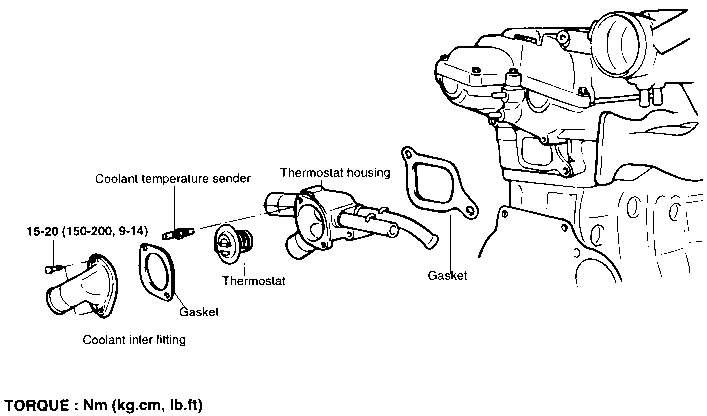

COMPONENTS
