SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Engine Mechanical System Intake & Exhaust System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

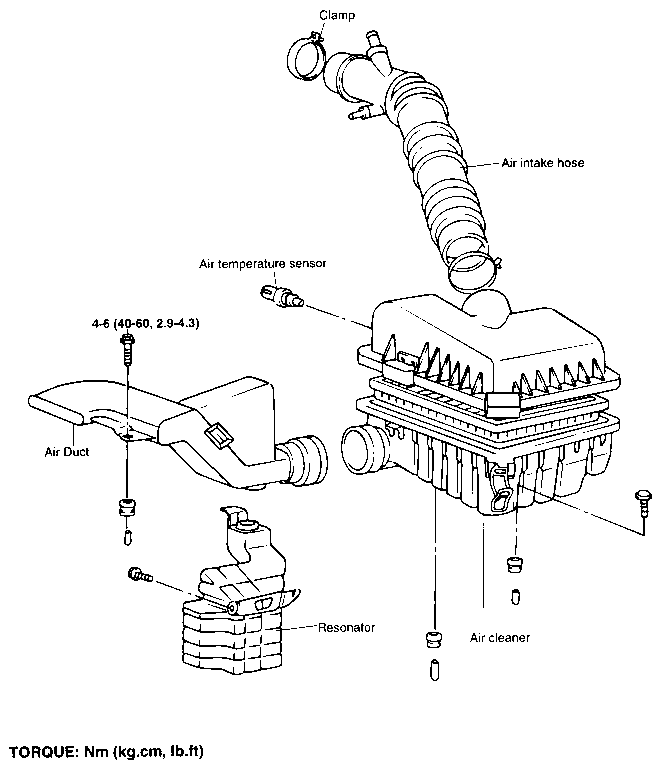

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DISASSEMBLY

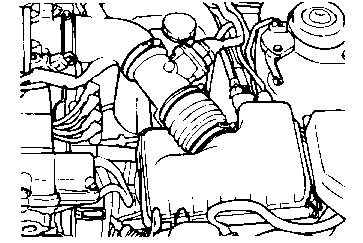

  1. Remove the air duct connected to the air cleaner.

  1. Disconnect the intake air temperature sensor harness.

  1. Remove the air intake hose from the air cleaner side.

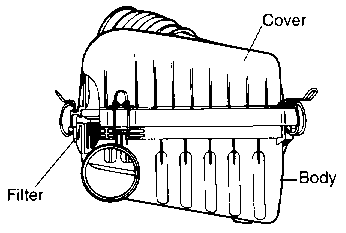

  1. Remove the air cleaner cover and filter.

  1. Remove the air cleaner mounting bolts and remove the air cleaner.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION
  1. Check the air cleaner body, cover, or filter for distortion, corrosion or damage.

  1. Check the air duct for damage.

  1. Check the resonator for distortion or damage.

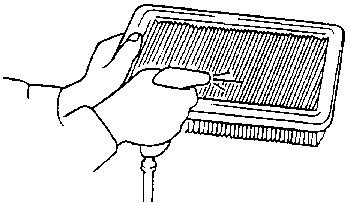

  1. Check the air cleaner filter for restriction, contamination or damage. If the filter is slightly restricted, remove dust and other contaminants by blowing air from the upper side through the filter.

  1. Check the air cleaner housing for restrictions, contamination or damage.

REASSEMBLY

Install the air cleaner is the reverse order of removal.
