SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Heating, Ventilation & Air Conditioning Air Conditioning System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

ON-VEHICLE INSPECTION
  1. Check condenser fins for blockage or damage. If the fins are clogged, clean them with pressurized water.

    NOTE
    Be careful not to damage the fins.

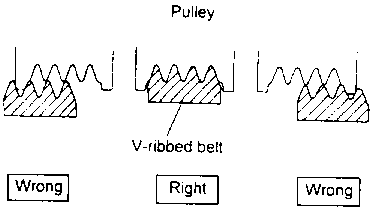

  1. Make sure that drive belt is installed correctly. Check that the drive belt fits properly in the ribbed grooves.

  1. Check drive belt tension. If the proper tensions are not maintained, belt slippage will greatly reduce air conditioning performance and drive belt life. To avoid such adverse effects, the following service procedure should be followed:

    1. Any belt that has operated for a minimum of one half-hour is considered to be a "used" belt. Adjust air conditioning drive belt at the time of new-car preparation.
    1. Check drive belt tension at regular service intervals and adjust as needed.
      CONDITION
      		 LENGTH (mm)
      After Driving
      		 Approximately 8
      Used Belt
      		 6 - 7
      New Belt
      		 5 - 5.5
  1. Start the engine.

  1. Turn On the A/C Switch. Check that the A/C operates at each position of the blower switch.

  1. Check magnetic clutch operation.

  1. Check idle RPM increasing. When the magnetic clutch engaged, idle RPM should be increased (refer to engine section).

  1. Check condenser fan motor rotation.

    IG. KEY
    		 A/C switch
    		 ECT sensor sensing temp.
    		 CONDENSER
    FAN MOTOR
    ON
    		 ON
    		 -
    		 ON

    		OFF
    		 Below 107°C
    		 OFF


    		Above 107°C
    		 ON
    OFF
    		 -
    		 -
    		 OFF

FOOT1.
ECT = Engine Coolant Temperature

  1. If no cooling or it is insufficient, inspect for leakage. Using a gas leak detector, inspect each component of the refrigeration system.
